A thread measuring tool helps identify the size and pitch of screw threads quickly and accurately. It is essential for mechanics, hobbyists, and workshop users.

Thread pitch gauges measure the distance between threads on screws, bolts, or nuts. These tools come in sets with both metric and standard (SAE) sizes. They show the thread profile, usually at 60 degrees, to match various fasteners. Using a thread gauge prevents mistakes when replacing or matching parts.

Many models include locking devices for easy handling and precise readings. Common brands like GRIP US, Grizzly, and LOZAGU offer reliable options for both coarse and fine threads. Whether working in a garage or industrial setting, a thread measuring tool saves time and ensures proper fit and function.

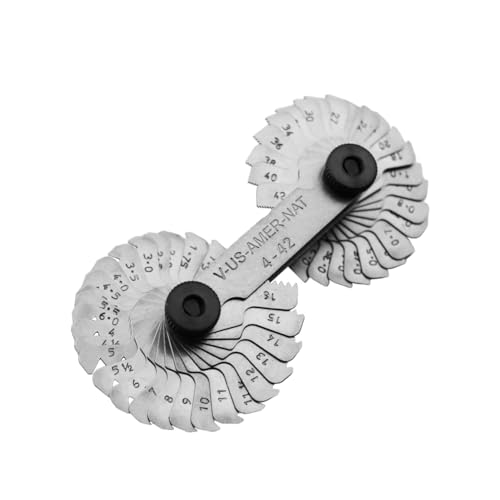

Grip Us American National Thread Pitch Gauge

The GRIP US American National Thread Pitch Gauge is ideal for professionals and DIY enthusiasts who frequently work with threaded fasteners, including mechanics, machinists, and hobbyists. If you need a reliable and precise tool to measure thread pitches in both metric and SAE units, this gauge is designed to simplify your workflow and ensure accuracy. It is especially useful for those working in garages, workshops, or home settings who require a versatile and compact measuring device.

Pros:

• Measures thread pitches ranging from 0.25 to 5.5mm and 4 to 42 SAE, covering a wide variety of applications
• Features 60-degree thread profiles for accurate thread identification
• Includes locking devices to keep the gauge securely closed when not in use
• Compact and durable design, perfect for use in garage, workshop, or home environments
• Clear MM & SAE markings for easy and quick measurement reading

Cons:

• Limited to American National thread profiles and may not work for specialized or international threads
• Small size may be challenging to handle for users with larger hands or less dexterity

The GRIP US American National Thread Pitch Gauge stands out for its dual-scale measurement system, offering both metric (MM) and SAE markings. This versatility allows users to measure thread counts accurately across a broad range of fasteners without needing multiple tools. Its precision-engineered 60-degree thread profiles ensure that the thread pitch readings are highly reliable, reducing errors during mechanical repairs or assembly tasks.

Constructed with convenience in mind, this gauge’s compact dimensions (1.2 inches height, 4.7 inches width, and 5.7 inches length) allow for easy storage and portability. The integrated locking device keeps the tool closed when not in use, preventing damage to the delicate measuring blades. Whether you are working on automotive parts, machinery, or household projects, this thread pitch gauge delivers both accuracy and durability, making it an essential tool for thread identification and measurement.

Performance Tool W8655 Combination Thread Pitch Gauge

The Performance Tool W8655 Combination Thread Pitch Gauge is ideal for mechanics, engineers, and DIY enthusiasts who require precise measurement of both standard and metric thread pitches. If you work frequently with threaded fasteners and need a reliable tool to verify thread sizes quickly, this gauge is tailored to meet your needs. Its compact size and quality construction make it a practical addition to any toolbox.

Pros:

• Measures both standard and metric thread pitches with a 60-degree angle for versatile use.
• Constructed with quality materials ensuring durability and long-lasting accuracy.
• Compact and lightweight design (2.75 inches length and 0.1 pounds), making it easy to carry and handle.
• Clear, easy-to-read markings enhance accuracy of readings.

Cons:

• Limited to a 60-degree thread angle, which may not cover specialty thread forms.
• Small size might be challenging to use for those with larger hands or in low-light conditions.

The Performance Tool W8655 Combination Thread Pitch Gauge offers a comprehensive solution for measuring thread pitches, combining both standard and metric scales in one compact device. Its 60-degree angle matches the most common thread profiles, allowing users to quickly and accurately identify thread sizes without switching tools. This efficiency is particularly beneficial in busy workshops or on-site repairs, where time and precision are critical.

Built with quality construction, the gauge is designed to withstand frequent use, ensuring consistent performance over time. The lightweight and portable dimensions make it convenient for technicians to carry around, while the clear markings allow for fast, error-free readings. Whether you are verifying replacement parts or manufacturing components, this tool provides the reliability and ease of use necessary for professional-grade results.

Grizzly H5615 Screw Pitch-gauge

The Grizzly H5615 Screw Pitch-Gauge 4-84 is ideal for professionals and hobbyists who require precise measurement of screw threads. Whether you are a machinist, engineer, or DIY enthusiast, this tool helps ensure accuracy in thread identification, making it a valuable addition to your toolkit.

Pros:

• Compact size with dimensions of 0.5 x 3.75 x 1.5 inches, making it easy to carry and store.
• High-quality construction from the reputable Grizzly brand ensures durability and reliability.
• Covers a wide range of screw pitches from 4 to 84, providing versatility for various projects.
• Simple to use, allowing quick and accurate thread pitch measurement.

Cons:

• Limited to screw pitch measurement; not suitable for other types of thread gauges.
• Small size may be difficult to handle for users with larger hands or gloves.

The Grizzly H5615 Screw Pitch-Gauge offers exceptional precision in measuring screw thread pitches ranging from 4 to 84, making it highly versatile for different applications. Its compact dimensions enable users to easily fit it into their toolkits or pockets, ensuring it is always on hand when needed. The sturdy build from Grizzly guarantees lasting performance, even under frequent use in demanding environments.

In addition to its robust design, this gauge simplifies the process of identifying screw threads, saving valuable time and reducing errors. The clear markings and well-crafted blades allow for quick matching of screw threads, enhancing efficiency in machining, repair, and assembly tasks. Overall, the Grizzly H5615 is a reliable and user-friendly tool for anyone needing precise thread pitch measurement.

Taskar Nut, Bolt & Screw Measuring Gauge

The Taskar Nut, Bolt & Screw Measuring Gauge Size & Thread Pitch is ideal for professionals and DIY enthusiasts who require precise measurement of fasteners. Whether you’re a mechanic, engineer, or hobbyist working with various nuts, bolts, and screws, this gauge provides an easy and accurate way to identify sizes and thread pitches in both inches and metric units.

Pros:

• Dual measurement system supports both inches and metric units for versatile use.
• Bright yellow color enhances visibility and reduces the chance of misplacement.
• Compact and lightweight design makes it portable and easy to carry.
• Accurately measures thread pitch and sizes for nuts, bolts, and screws.
• Durable construction ensures long-lasting reliability.

Cons:

• Limited to standard sizes and may not cover specialty or custom fasteners.
• Manual reading may require some practice for beginners.

The Taskar Nut, Bolt & Screw Measuring Gauge offers a practical solution for measuring a wide range of fasteners with precision. Its dual-scale feature allows users to quickly switch between inches and metric measurements, which is particularly useful for international projects or mixed hardware collections. The clear markings and bright yellow color help ensure accurate readings, minimizing errors during work.

Designed with portability in mind, this gauge fits easily into a toolbox or pocket, making it accessible whenever needed. Users benefit from its durable build, which withstands regular use in workshops or on job sites. Although it caters mainly to common sizes, the gauge covers the essentials for most applications, making it a valuable tool for anyone dealing with fasteners regularly.

Harfington British Whitworth Screw Thread Pitch Gauge Tool

The HARFINGTON British Whitworth 4G-48G Screw Thread Pitch Gauge Tool is ideal for professionals and hobbyists involved in industrial measurement, mechanical engineering, and precision machining. If you frequently work with screw threads and need an accurate, reliable way to measure thread pitch, this tool is designed to meet your needs with ease and precision.

Pros:

• High accuracy in measuring British Whitworth thread pitches from 4G to 48G
• Durable construction suitable for industrial environments
• Compact and portable design for easy use on the job site
• Easy-to-read markings for quick identification of thread pitch
• Manufactured by HARFINGTON, ensuring quality and reliability

Cons:

• Limited to British Whitworth thread types, not suitable for metric or other thread standards
• May require some familiarity with thread pitch measurement for beginners

The HARFINGTON Screw Thread Pitch Gauge Tool features a comprehensive range of thread pitch options, from 4G to 48G, specifically designed for British Whitworth threads. This makes it an indispensable tool for anyone working with legacy British machinery or components requiring precise thread measurement. Its robust build ensures long-lasting performance even in demanding industrial settings.

Users benefit from the tool’s clear, easy-to-read markings, which simplify the process of identifying thread pitches and reduce the risk of measurement errors. The compact size and ergonomic design make it convenient to carry and use in various work environments, enhancing productivity and accuracy in screw thread measurement tasks.

Pit Posse Pp2467 Nut & Bolt Thread Pitch Length Gauge

The Pit Posse PP2467 Nut & Bolt Thread Pitch Length Gauge is ideal for automotive enthusiasts, mechanics, and DIY hobbyists who require precise measurement tools for both metric and SAE American thread pitches. If you frequently work with various nuts and bolts and need an accurate, easy-to-use gauge to identify thread sizes quickly, this compact and reliable tool is perfect for you.

Pros:

• Dual measurement capability for both metric and SAE thread pitches.
• Compact and lightweight design measuring 8.8 inches in height and 3.5 inches in length for easy portability.
• Constructed by the trusted Pit Posse brand, ensuring quality and durability.
• White color for clear visibility of markings and scales.
• Accurately measures thread pitch and length for precise identification.

Cons:

• The narrow width (0.2 inches) may require careful handling to avoid bending or damage.
• Limited to nut and bolt thread measurement; not suitable for other fastener types.

The Pit Posse PP2467 Thread Pitch Length Gauge stands out because of its dual-scale design, enabling users to effortlessly switch between metric and SAE thread measurements. This versatility is especially beneficial for professionals who deal with a variety of international hardware standards. Its compact dimensions make it easy to carry in a toolbox or pocket, so you can have precise measurements on hand wherever you are working.

Made with durability in mind, this gauge provides clear and accurate readings that reduce the chances of errors when selecting replacement nuts or bolts. The white finish enhances the contrast against the engraved markings, improving legibility in different lighting conditions. Overall, this tool simplifies the process of identifying thread specifications, saving time and increasing productivity for anyone involved in mechanical repairs or assembly.

Marine Bolt Supply Nut, Bolt & Screw Gauge

The Marine Bolt Supply Nut, Bolt & Screw Gauge is ideal for professionals and DIY enthusiasts who frequently work with fasteners and need a reliable tool to measure diameter, length, and thread pitch accurately. This gauge is perfect for mechanics, marine technicians, and hardware store owners who require both standard and metric measurements in one convenient device.

Pros:

• Compact and lightweight with dimensions of 8.75 inches length, 3.25 inches width, and 0.25 inches height for easy portability.
• Features both coarse and fine thread pitch measurements, suitable for a wide variety of fasteners.
• Dual measurement system incorporating standard and metric gauges for versatile use.
• Durable and easy-to-read green color design enhances visibility during use.
• Manufactured by Marine Bolt Supply, ensuring quality and reliability.

Cons:

• Limited to measuring bolts, nuts, and screws only; not suitable for other fastener types.
• Plastic construction may not withstand heavy impact or harsh environments.
• Size might be slightly bulky for users seeking a pocket-sized gauge.

The Marine Bolt Supply Nut, Bolt & Screw Gauge stands out for its comprehensive measurement capabilities, combining both standard and metric scales along with coarse and fine threads. This allows users to quickly and accurately identify the specifications of various fasteners, reducing errors and saving time during repairs or installations. Its clear markings and color-coded design make it easy to read even in low-light conditions.

Additionally, this gauge’s compact form factor ensures it fits comfortably in toolboxes or work belts, making it a handy tool for on-the-go professionals. While it is primarily designed for marine and mechanical applications, its versatility benefits anyone needing precise fastener measurements. The quality craftsmanship from Marine Bolt Supply guarantees a reliable tool that can withstand regular use in demanding environments.

Screw Thread Gauge

The Screw Thread Gauge | Metric and SAE | Recommends Drill Bit & Tap Size (BCP675) is ideal for mechanics, engineers, DIY enthusiasts, and professionals who frequently work with threaded fasteners. If you need an accurate and reliable tool to identify thread sizes quickly and determine the correct drill bit and tap sizes, this gauge is perfect for you. It simplifies tasks such as repairs, maintenance, and custom fabrication by providing clear, precise measurements in both metric and SAE units.

Pros:

• Compact and lightweight design for easy portability and storage
• Dual measurement system with Metric and SAE thread size identification
• Includes recommended drill bit and tap sizes for each thread, enhancing workflow efficiency
• Durable construction by BCP Fasteners ensures long-lasting accuracy
• Simple to use, saving time during mechanical and fabrication projects

Cons:

• Lack of detailed physical dimensions might be a concern for users needing exact size references
• Limited weight may imply smaller size, potentially difficult to handle for users with larger hands

This screw thread gauge is designed to provide quick and precise identification of threads in both metric and SAE standards. It helps users avoid guesswork by recommending the appropriate drill bit and tap sizes, which is crucial for ensuring proper thread engagement and avoiding damage to materials. Its lightweight and compact form factor make it convenient for carrying in toolkits or pockets, so it is always accessible when needed on the job site or in the workshop.

Manufactured by BCP Fasteners, the gauge promises durability and reliability, essential for professionals who require consistent performance. Although the product dimensions are not explicitly stated, the minimal weight suggests a sleek design optimized for ease of use. Overall, this tool enhances productivity by combining multiple thread measurement functions into one compact device, making it an invaluable addition for anyone working with fasteners regularly.

Lozagu Nut And Bolt Thread Checker

The LOZAGU Nut and Bolt Thread Checker – 26 Gauges is ideal for mechanics, DIY enthusiasts, and professionals who frequently work with threaded fasteners. Whether you need to identify thread sizes for repairs or assembly, this 26-piece set ensures you have the right gauge at your fingertips. If you require precise thread measurement in both imperial (14 inch) and metric (12 metric) units, this tool set is designed to meet your needs efficiently.

Pros:

• Comprehensive 26 gauges covering both 14 inch and 12 metric thread sizes.
• Compact and portable design with dimensions of 1.7 inches height, 4.3 inches width, and 5.0 inches length.
• Durable black silver finish that resists wear and corrosion.
• Easy-to-use layout for quick and accurate thread identification.
• Manufactured by LOZAGU, ensuring quality and reliability.

Cons:

• May require some practice for beginners to identify thread sizes accurately.
• Limited to nut and bolt thread checking; not suitable for other fastener types.

The LOZAGU Nut and Bolt Thread Checker set stands out due to its dual measurement system, which simplifies the process of identifying both imperial and metric threads. This versatility benefits users who handle diverse fastener types across different projects or industries. Its compact size makes it convenient to carry in toolkits or pockets without adding bulk, which is essential for on-the-go professionals or hobbyists.

Each gauge is clearly marked and designed for durability, ensuring long-term use without degradation of accuracy. The sturdy construction with a sleek black silver finish not only looks professional but also withstands daily wear and tear. Overall, this thread checker set enhances efficiency by reducing guesswork and helping users quickly determine the correct fastener size, thereby saving time and avoiding costly mistakes.

Stainlesstown Nut Bolt Thread Gauge

The Stainlesstown Nut Bolt Thread Gauge (Red) is perfect for professionals and DIY enthusiasts who require precise measurement of thread sizes for nuts and bolts. If you often work with fasteners and need a reliable, easy-to-use tool to verify thread dimensions, this gauge is an ideal addition to your toolkit.

Pros:

• Accurate thread measurement for both nuts and bolts
• Compact and lightweight design with dimensions of 8.75 inches length, 3.37 inches height, and 0.25 inches width
• Durable construction by the trusted Stainless Town brand
• Bright red color makes it easy to locate in your toolbox
• Simple to use and highly portable for on-site inspections

Cons:

• Limited to thread sizes compatible with the gauge; may not cover all specialty threads
• Plastic components may wear over extended heavy use

The Stainlesstown Nut Bolt Thread Gauge offers reliable performance thanks to its precise thread sizing, allowing users to quickly identify the correct nut or bolt thread type without guesswork. The compact size and lightweight build make it convenient for carrying around on job sites or in workshops, enhancing efficiency for mechanics, engineers, and hobbyists alike.

Manufactured by Stainless Town, the gauge boasts quality materials and construction, ensuring durability and long-lasting use. Its vivid red color ensures it stands out among other tools, reducing the chance of misplacement. Overall, this thread gauge is a practical and essential tool for anyone frequently working with threaded fasteners who values accuracy and convenience.

Frequently Asked Questions

What Is A Thread Measuring Tool Used For?

A thread measuring tool identifies the pitch and size of screw threads. It ensures compatibility in repairs and manufacturing. These tools support both metric and SAE standards. Accurate measurement prevents thread damage and improves assembly quality. They are essential for mechanics, engineers, and DIY enthusiasts.

How Do I Read A Thread Pitch Gauge Correctly?

Match the gauge teeth to the screw thread profile. The correct gauge fits snugly without gaps. Read the pitch value marked on the tool. This indicates the thread pitch in millimeters or threads per inch. Consistent alignment ensures precise measurement and thread identification.

Which Thread Pitch Gauge Is Best For Metric And Sae?

Combination gauges like GRIP US W8655 measure both metric and SAE threads. They cover a wide range of thread pitches and sizes. Tools with 60-degree profiles suit most applications. Choose gauges with durable construction for long-lasting accuracy. Versatile gauges reduce the need for multiple tools.

Can Thread Measuring Tools Detect Damaged Threads?

Yes, thread pitch gauges highlight irregularities and damage in threads. Uneven tooth fit or gaps indicate thread wear or defects. Early detection prevents fastener failure and costly repairs. Use gauges regularly to maintain thread integrity in tools and machines.

What Industries Benefit Most From Thread Measuring Tools?

Manufacturing, automotive, aerospace, and home workshops rely heavily on these tools. They ensure fastener compatibility and safety compliance. Industrial measurement tools like Harfington and Grizzly models enhance precision. Thread gauges improve workflow efficiency and reduce errors in assembly lines.

Conclusion

Understanding thread measuring tools is crucial for precision in projects. These tools help ensure accurate measurements, whether you’re in a garage, workshop, or at home. They come in various types, each designed for specific tasks. For example, some tools measure both metric and SAE threads, while others focus on specific thread profiles like the British Whitworth.

Each tool, from GRIP US to Stainlesstown, offers unique features. These include different thread counts and locking devices for stability. Choosing the right tool depends on your specific needs. Consider what measurements you need to take and the materials you’ll be working with.

This way, you can select the most suitable tool for your projects. With the right thread measuring tool, you can achieve greater accuracy and efficiency. This ensures that bolts, nuts, and screws fit perfectly every time. Thus, investing in a quality thread gauge is a wise decision for any craftsman or DIY enthusiast.
