An automatic tool changer (ATC) for CNC routers saves time and improves work accuracy. It allows the machine to switch tools without stopping the process.

Automatic tool changers help CNC routers work faster and more efficiently. They hold multiple tools and change them automatically during cutting or engraving. This reduces manual work and errors. Many CNC routers use tool holders like ISO20, ISO30, or BT30 to fit different tools.

Sensors and tool setters ensure precise tool positioning. ATCs come with parts such as spindle motors, clamps, claws, and probes to support smooth operation. Some models include water-cooled spindles and servo motors for better performance. Using an automatic tool changer boosts productivity, especially in woodworking, metalworking, and crafting projects. It also lowers downtime and increases machine lifespan by reducing manual handling.

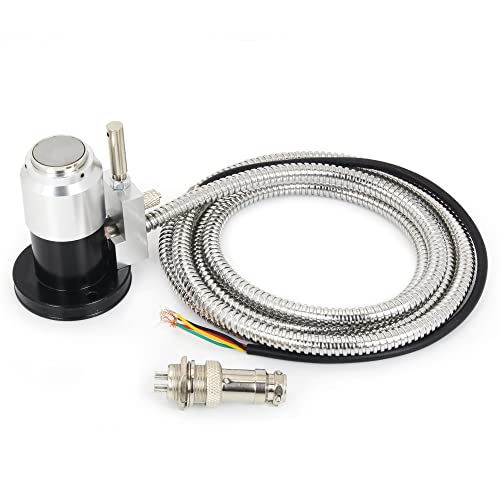

Rattmmotor Normally Open Mach3 Cnc Automatic Tool Sensor Gauge Changer

The RATTMMOTOR Normally Open Mach3 CNC Automatic Tool Sensor Gauge Changer is ideal for CNC router and engraver machine operators who need precise and reliable tool setting. This product is perfect for professionals and hobbyists looking to enhance the accuracy of their CNC Z axis probing and streamline the tool changing process. If you want to improve machining efficiency and reduce setup time, this sensor gauge changer is a suitable choice.

Pros:

• High precision tool setting for enhanced machining accuracy
• Compatible with Mach3 CNC systems for easy integration
• Durable design with quality materials ensuring long-term use
• Lightweight and compact dimensions (Height: 4.33 in, Width: 2.76 in, Length: 5.91 in)
• Easy wiring with 4 wires for simple installation on CNC routers and engravers

Cons:

• Requires familiarity with CNC setup and Mach3 software for optimal use
• May not be compatible with all CNC machine brands beyond those supporting Mach3
• Limited documentation provided by manufacturer RTM

The RATTMMOTOR tool sensor offers a robust solution for automating the tool setting process in CNC machining. Its normally open design ensures that the sensor activates precisely when the tool touches the probe, minimizing errors and improving repeatability. The compact size and lightweight construction make it easy to mount on various CNC machines without adding significant bulk or weight.

Equipped with four wires, this sensor integrates seamlessly into existing CNC systems, particularly those running the popular Mach3 control software. Users benefit from faster tool changes and more consistent Z axis probing, which translates into smoother machining operations and higher quality end products. Overall, this sensor enhances productivity and precision for CNC router and engraver users.

Maxmartt 5pcs Iso30 Tool Holder Clamp Cradle Claw Set

The Maxmartt 5pcs ISO30 Tool Holder Clamp Cradle Claw Set is ideal for professionals and hobbyists who operate CNC machines with an automatic tool changer. If you are involved in woodworking, engraving, or precision machining, this tool set offers the perfect combination of durability and compatibility, making it a must-have for enhancing your machining efficiency.

Pros:

• High compatibility with ISO30 CNC automatic tool changers
• Durable clamp cradle and claw design for secure tool holding
• Includes a comprehensive set of 5 pieces to cover various tooling needs
• Improves tool change speed and accuracy
• Manufactured by the reputable brand Maxmartt, ensuring quality

Cons:

• May require precise adjustment for optimal fit on different CNC machines
• Limited to ISO30 tool holders, not compatible with other sizes

The Maxmartt ISO30 Tool Holder Clamp Cradle Claw Set is engineered to deliver reliable performance in demanding CNC machining environments. Its robust construction ensures that tools are held firmly during operation, reducing the risk of slippage and improving machining accuracy. This contributes to longer tool life and better finished products.

Designed specifically for ISO30 tool holders, this set streamlines the process of changing tools automatically, saving valuable time during production runs. The ergonomic design of the cradle and claw components allows for easy installation and removal, enhancing workflow efficiency for both professional machinists and woodworking enthusiasts.

Cnc Automatic Tool Sensor Gauge

The CNC Automatic Tool Sensor Gauge is ideal for professionals and hobbyists who operate CNC routers and require precise tool setting for improved machining accuracy. This tool is perfect for those who want to enhance their workflow efficiency and reduce tool measurement errors in their CNC operations.

Pros:

• High precision tool setting for accurate machining
• Operates on DC 24V power for stable performance
• Normally closed touch probe design ensures reliable tool detection
• Compatible with various CNC router models
• Manufactured by Mefape, a trusted brand in CNC accessories

Cons:

• Requires proper installation and calibration for optimal use
• May not be compatible with CNC machines outside the specified voltage range

The CNC Tool Setter from Mefape offers a robust solution for tool measurement, featuring a normally closed touch probe that minimizes false triggers during tool setting. The device’s DC 24V power supply ensures consistent and stable operation, reducing downtime and improving overall machining precision. Its compatibility with various CNC routers makes it a versatile addition to any CNC workshop.

With this tool sensor gauge, users benefit from faster tool setting processes, which directly translate into increased productivity and reduced waste. The precision provided by this sensor helps in maintaining consistent tool lengths, thereby improving the quality of finished parts. Overall, the Mefape CNC Automatic Tool Sensor Gauge is a valuable investment for anyone looking to optimize their CNC router operations.

1.8kw Iso20 Atc Water Cooled Spindle Motor Automatic Tool Changer

The 1.8KW ISO20 ATC Water Cooled Spindle Motor with an Automatic Tool Changer is ideal for professionals and hobbyists who require high precision and efficiency in their CNC Router, Milling, or Engraving machines. This product is perfect for users looking to upgrade their CNC setups with a robust and reliable spindle motor system that supports fast tool changes and consistent cooling for prolonged operation.

Pros:

• High power output of 1.8KW ensures strong cutting and engraving performance.
• Automatic Tool Changer (ATC) enhances productivity by reducing manual tool swapping time.
• Water-cooled design maintains optimal temperature, extending spindle life and preventing overheating.
• High rotation speed of 24000rpm at 400Hz allows for smooth and precise machining.
• Includes a 2.2KW 220V VFD Inverter Converter for flexible speed control and energy efficiency.
• Compact 80mm ISO20 spindle size fits a wide range of CNC machines.

Cons:

• Requires a water cooling system setup which may increase initial installation complexity.
• Higher power consumption compared to smaller spindle motors.
• May be overkill for very small or hobby-level CNC machines due to its high specifications.

The 1.8KW ISO20 ATC Water Cooled Spindle Motor is engineered to provide exceptional performance for demanding CNC applications. The combination of a water-cooled spindle and an automatic tool changer reduces downtime and improves machining accuracy by keeping the spindle temperature stable during extended use and allowing swift tool swaps. The inclusion of a 2.2KW VFD inverter enables users to precisely control spindle speed, optimizing cutting conditions across various materials.

This CNC kit from CNCTOPBAOS, manufactured by Changzhou Rattm Motor Co.,Ltd, offers a balanced mix of power and control. Its 24000rpm speed and ISO20 mounting standard make it versatile for many industrial and workshop CNC machines. The system is designed for users who value reliability and performance in their machining projects, providing a significant upgrade over standard air-cooled or manual tool change spindles.

Automatic Tool Changer Servo Spindle Motor 18kw Cnc Bt40 Spindle Permanent Magnet With Encoder

The Automatic Tool Changer servo Spindle Motor 18kw CNC BT40 Spindle Permanent Magnet with Encoder (1.5w Spindle) is ideal for professional machinists and manufacturing businesses that require high precision and efficiency in CNC machining. This item is perfect for those looking to enhance their CNC machines with a reliable, powerful spindle motor that supports automatic tool changes for increased productivity.

Pros:

• High power output with 18kw for demanding machining tasks
• Permanent magnet design ensures energy efficiency and consistent performance
• Integrated encoder provides precise speed and position feedback
• Supports automatic tool changing to reduce downtime
• Compact BT40 spindle interface fits a wide range of CNC machines

Cons:

• Relatively heavy weight at approximately 22 pounds, requiring sturdy mounting
• May require professional installation due to technical complexity
• Higher initial cost compared to standard spindle motors

The LVSEDTAL Automatic Tool Changer servo Spindle Motor stands out for its impressive 18kw power rating, enabling it to handle tough machining operations with ease. Its permanent magnet technology enhances efficiency and reduces energy consumption, making it a cost-effective choice over time. Additionally, the built-in encoder ensures precise control over spindle speed and positioning, critical for maintaining machining accuracy and quality.

Designed with a BT40 spindle interface, this motor is compatible with many CNC machines, offering versatility for different machining setups. The automatic tool changer capability significantly reduces manual intervention, increasing workflow efficiency and minimizing production delays. Overall, this spindle motor is a robust solution for professionals aiming to upgrade their CNC equipment with advanced features and superior performance.

Almencla 4 Holder Clamp Claw Bt30

The Almencla 4 Holder Clamp Claw BT30 is ideal for professionals and hobbyists who operate engraving machines and CNC routers. If you require a reliable and precise tool changer accessory that enhances your machine’s efficiency, this product is designed for you. It is perfect for users seeking improved tool holding stability and quick tool changes during complex machining tasks.

Pros:

• Durable construction ensures long-lasting performance.
• Compatible with BT30 tool holders for versatile usage.
• Facilitates quick and secure tool changes to minimize downtime.
• Multicolored design aids in easy identification and organization.
• Manufactured by Almencla, known for quality CNC accessories.

Cons:

• May not be compatible with non-BT30 tool holders.
• Installation might require technical knowledge for beginners.
• Limited to specific engraving machine models.

The Almencla 4 Holder Clamp Claw BT30 offers robust compatibility with BT30 tool holders, making it a valuable addition to any CNC router or engraving machine setup. Its sturdy build quality ensures that tools remain firmly clamped during operation, reducing the risk of errors and improving overall machining precision. The multicolored design is not only aesthetically pleasing but also functional, allowing operators to quickly identify and manage their tool holders.

Additionally, the clamp claw significantly speeds up the tool-changing process, which is crucial for maintaining productivity in busy workshop environments. By minimizing machine downtime, users can achieve smoother workflow and higher output efficiency. With the backing of Almencla’s manufacturing expertise, this product provides a reliable and effective solution for anyone looking to enhance their CNC machining capabilities.

3kw Bt30 Atc Water Cooled Spindle Motor

The 3KW BT30 220V ATC Water Cooled Spindle Motor is ideal for professionals and hobbyists who require a reliable and high-performance spindle for their CNC router, milling, or engraving machines. If you are looking to enhance your machining precision and efficiency with an automatic tool changer and water cooling system, this spindle motor is designed to meet those needs.

Pros:

• High speed operation up to 24000rpm for fast and precise machining
• Automatic Tool Changer (ATC) improves workflow by reducing manual tool changes
• Water cooled system ensures stable operation and prevents overheating
• Compact design with a 100mm size fitting most CNC machines
• Reliable brand from CNCTOPBAOS and manufactured by Changzhou Rattm Motor Co., Ltd

Cons:

• Relatively heavy at approximately 46.3 pounds, which may require sturdy machine mounts
• Requires a 220V power supply, which may not be available in all workshop settings
• Water cooling setup adds complexity compared to air-cooled spindles

The 3KW BT30 spindle motor stands out with its ability to deliver high rotational speeds of up to 24000rpm at 400Hz, which is perfect for detailed engraving and efficient milling processes. The inclusion of an automatic tool changer significantly reduces downtime between tool swaps, boosting productivity for users who handle complex or multi-step projects. Thanks to its water-cooled design, the spindle maintains optimal temperature during extended use, enhancing both performance and longevity.

With a 100mm dimension and a solid build weighing over 46 pounds, this spindle is engineered to fit securely on a variety of CNC routers and milling machines. Its robust construction from a reputable manufacturer ensures durability and consistent operation. While the water cooling system requires additional setup, the resulting stability and reduction in heat-related wear make it a worthwhile investment for serious CNC operators seeking precision and reliability.

Rattmmotor Ip65 Blue Cnc Router Automatic Tool Sensor Gauge

The RATTMMOTOR IP65 Blue CNC Router Automatic Tool Sensor Gauge is ideal for CNC enthusiasts, professional machinists, and small to medium-sized manufacturing businesses seeking precise and reliable tool setting solutions. If you require an accurate and durable CNC Z Axis Probe with exceptional sensitivity for your engraving or milling machines, this tool touch setter is designed for you. Its normally closed design and high precision make it suitable for users aiming to enhance machining accuracy and efficiency.

Pros:

• High precision with 0.005mm accuracy for superior tool measurement
• IP65 waterproof rating ensures durability in harsh workshop environments
• Compatible with Mach3 CNC software for seamless integration
• Automatic tool sensor enhances workflow efficiency by reducing manual setup time
• 5mm stroke allows reliable and repeatable tool touch detection

Cons:

• Requires familiarity with Mach3 CNC software for optimal use
• May need careful handling to maintain normally closed contact integrity
• Limited to certain CNC machine types and sizes

The RATTMMOTOR IP65 Blue CNC Router Automatic Tool Sensor Gauge features a robust IP65-rated housing that protects it from dust and water, making it ideal for demanding workshop conditions. Its precise 0.005mm accuracy ensures that tool length measurements are consistently reliable, which directly contributes to improved machining quality and reduced errors. Integration with Mach3 CNC software streamlines the setup process, allowing users to automate tool setting without manual intervention.

Additionally, the 5mm stroke capability provides sufficient travel for effective tool detection and touch setting, minimizing the risk of tool breakage or misalignment. This sensor’s normally closed design simplifies wiring and enhances signal reliability, which is crucial for maintaining consistent performance over extended periods. Overall, this tool touch setter is a valuable upgrade for anyone looking to boost productivity and accuracy in CNC engraving or milling operations.

Carvera Air Desktop Cnc Machine

The Carvera Air Desktop CNC Machine with 4th Axis and PCB Fabrication Pack is ideal for hobbyists, makers, and small business owners who require a compact yet powerful solution for precision milling and cutting. Whether you are into DIY projects, crafts, or need to fabricate PCBs, this machine offers versatility and user-friendly operation for both beginners and experienced users.

Pros:

• Compact enclosed design ensures safety and reduces noise during operation.
• 4th Axis capability allows for more complex and detailed milling projects.
• Quick tool changer improves workflow efficiency by minimizing downtime.
• Closed-loop control system offers high precision and repeatability.
• User-friendly CAM software simplifies programming and enhances accessibility.

Cons:

• Limited workspace size may not be suitable for large-scale projects.
• May require a learning curve for users new to CNC machining.
• Price point might be higher compared to basic CNC routers without advanced features.

The Carvera Air Desktop CNC Machine is equipped with a closed-loop control system that significantly enhances the precision and reliability of cuts. This means users can expect consistent, high-quality results, which is crucial for detailed work such as PCB fabrication or intricate craft projects. The inclusion of a 4th Axis expands the machine’s capabilities, enabling the creation of more complex geometries and multi-dimensional milling, which is a great advantage for creative professionals and engineers alike.

Additionally, the quick tool changer feature minimizes downtime between different milling or cutting operations, thus increasing productivity. The machine’s compact and enclosed design not only saves valuable workspace but also enhances safety by containing dust and debris. Together with the user-friendly CAM milling software, this CNC machine makes precision fabrication accessible and efficient, catering to both hobbyists and small business users who value quality and ease of use.

4 Holder Clamp Claw Bt30 For Engraving Machine Tool Changer Cnc Router

The 4 Holder Clamp Claw BT30 is ideal for professionals and hobbyists who operate engraving machines and CNC routers requiring efficient and reliable tool changing. If you need a durable, automatic tool holder that ensures quick switching between tools for improved workflow, this product from hominjoy is a perfect fit for your setup.

Pros:

• Automatic tool changing for enhanced productivity
• Durable plastic construction with a sleek black finish
• Compatible with BT30 spindle interfaces
• Compact design allowing easy integration with most CNC routers and engraving machines
• Reliable 4 holder clamp claw mechanism for secure tool holding

Cons:

• Plastic material may not be as robust as metal alternatives under heavy industrial use
• Limited to 4 tool holders, which might be insufficient for complex machining tasks

The 4 Holder Clamp Claw BT30 features a streamlined design that supports efficient automatic tool changes on your CNC router or engraving machine. Its plastic construction ensures a lightweight yet sturdy framework, reducing wear on the machine’s tool changer system. This product’s compatibility with the standard BT30 spindle interface makes it a versatile choice for various applications, ensuring a smooth fit and operation.

By providing four secure tool holding slots, this tool holder allows users to maintain multiple tools ready for quick switching, minimizing downtime and enhancing machining precision. The clamp claw design guarantees that each tool is held firmly in place, reducing the risk of tool slippage during high-speed operations. Overall, this automatic change tool holder delivers a balance of convenience and reliability, making it an excellent addition to any CNC engraving or routing setup.

Frequently Asked Questions

What Is An Automatic Tool Changer For Cnc Routers?

An automatic tool changer (ATC) swaps tools on a CNC router without manual help. It boosts efficiency and accuracy. ATCs reduce downtime and allow complex machining with multiple tools. They are essential for professional CNC woodworking and engraving machines.

How Does A Cnc Tool Sensor Gauge Work?

A CNC tool sensor gauge detects tool position and length automatically. It ensures precise tool setting and calibration. The sensor prevents errors and improves machining accuracy. It uses electrical signals to communicate tool status to the CNC controller.

What Are The Benefits Of Iso30 Tool Holders?

ISO30 tool holders provide secure tool clamping and easy tool changes. They ensure high precision and stability during machining. ISO30 holders are compatible with many CNC routers and spindle types. They improve tool life and machining quality.

Why Choose A Water-cooled Spindle Motor For Cnc Routers?

Water-cooled spindle motors reduce overheating during high-speed machining. They maintain stable temperatures for consistent performance. These spindles are quieter and more durable than air-cooled versions. Ideal for long CNC router operations and heavy-duty cutting.

Can An Automatic Tool Changer Improve Cnc Router Productivity?

Yes, an automatic tool changer significantly boosts productivity. It enables fast tool swaps without manual intervention. This saves time and allows complex multi-tool processes. ATCs reduce operator fatigue and improve overall workflow efficiency.

What Is The Accuracy Of Mach3 Cnc Tool Touch Sensors?

Mach3 CNC tool touch sensors offer high accuracy, often around 0. 005mm. They provide reliable tool setting and error detection. These sensors enhance CNC router precision and repeatability. Perfect for detailed engraving and milling work.

Conclusion

Exploring the world of CNC routers and automatic tool changers can enhance your machining experience. These tools streamline the workflow in various projects. They offer precision, efficiency, and ease of use. Whether you’re working with wood, metal, or other materials, these devices can help.

The RATTMMOTOR tool sensor gauge and Maxmartt tool holder set provide reliable solutions. They ensure quick and accurate tool changes, saving valuable time. Meanwhile, the Carvera Air Desktop CNC Machine offers an integrated approach for smaller projects. It combines a user-friendly interface with advanced capabilities.

This makes it suitable for DIY enthusiasts and professionals alike. Choosing the right automatic tool changer depends on your specific needs and projects. Consider factors like compatibility, speed, and accuracy. Investing in the right tool changer can lead to more efficient and successful outcomes.

By understanding your options, you can make informed decisions for your CNC router setup.
